ADS-FD - Auditorium Displacement Diffuser

ADS-FD

Volume flow rate range:

≤60 L/(s · m); (216 m³/(h · m))

Sound Power:

  • ≤15 dB(A)

Flanges:

  • Available with or without face flanges

 Length:

  • Variable

Height:

  • 100 - 300 mm

 Depth:

  • 70 mm



ADS-FD - Auditorium Displacement Diffuser

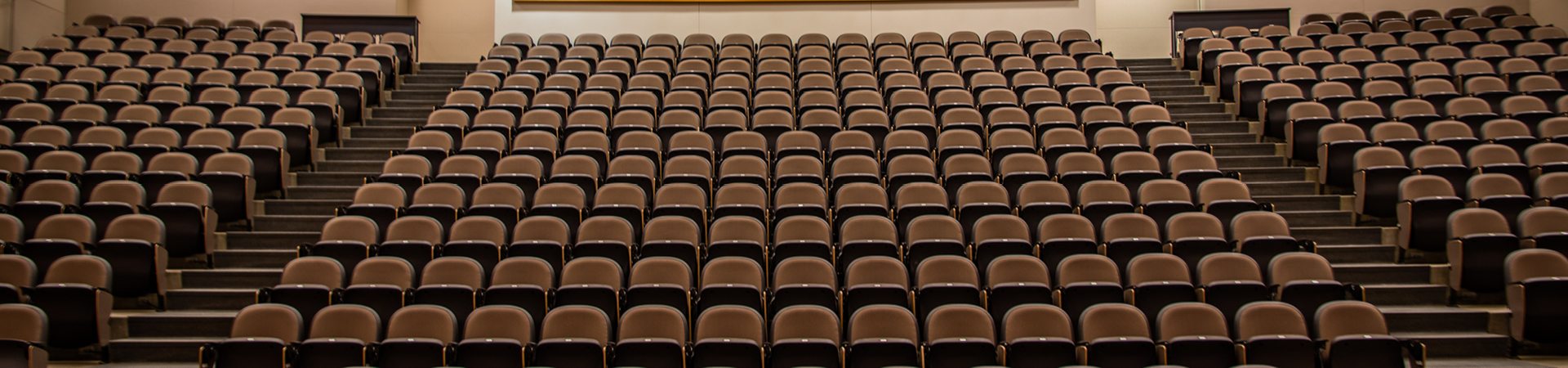

Rectangular step displacement diffuser for location in vertical step face beneath seats in tiered auditoria and lecture theatres or in a staircase.

  • For auditoria and halls with steps
  • Diffuser built into step front
  • With face flange - standard
  • Without face flange - optional. Ends may abut for continous look.
  • Optional concealed fasteners available
  • Slightly upward inclined, low velocity, low-turbulence displacement dispersion near floor
  • Low sound power level

Technical Data

ADS-FD - Auditorium Displacement Diffuser

ADS-FD - Auditorium Displacement Diffuser

ADS-FD - Auditorium Displacement Diffuser

ADS-FD - Auditorium Displacement Diffuser

ADS-FD - Auditorium Displacement Diffuser
