Standard Package Family

A Flexible Solution for multiple spaces

Combine a large commercial floor space and constantly changing cooling or heating loads and you will have a climate control challenge that these units are designed to handle, even in the extremes of summer and winter.

The OPA (Air cooled package systems) range in capacity from 11.6kW to 193.0kW and offer a wide range of flexibility to meet most applications.


3 PHASE

<br /> Available in 3 Phase&nbsp;


ADVANCED POWDER COATING

High Marine/Industrial Duralloy is a tough thermosetting powder coating


EPOXY COATED COILS

Standard for added coil protection. Surpass 1000 hr salt spray test


WIDE OPERATING RANGE

From -15&deg;C to +52&deg;C ambient

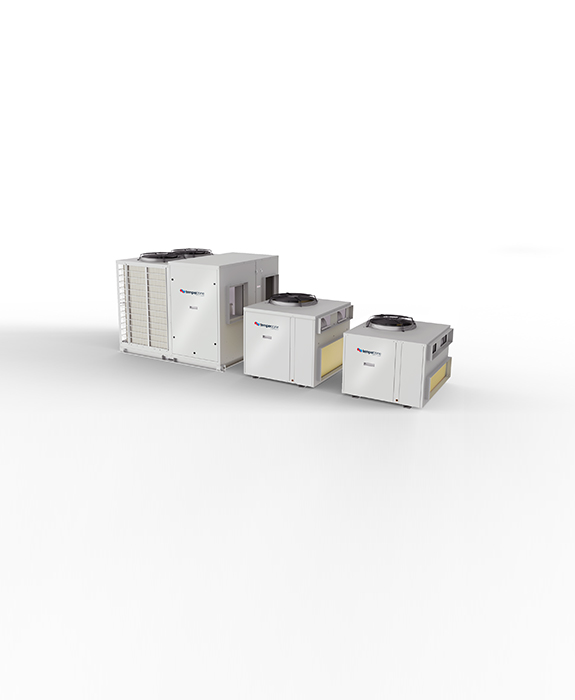

OPA Package Unit

Available in:

Reverse Cycle (Heating and Cooling)

Capacity Range Nominal kW (Cooling):

11.6, 16.1, 18.6, 20.0, 23.5, 29.5, 34.0, 39.1, 44.9, 54.6, 69.7, 85.1, 96.0, 137.0, 193.0

Refrigerant:

R410A

Innovation

Temperzone is dedicated to pioneering innovative new technologies and creating market-leading, easy-to-use solutions that offer precision climate control.

Perfect for most applications

Combine a large commercial floor space and constantly changing cooling or heating loads and you will have a climate control challenge that temperzone’s air cooled package units are designed to handle even in the extremes of summer and winter.

The OPA (Air cooled package systems) range in capacity from 11.6kW to 193.0kW and offer a wide range of flexibility to meet most applications

Variable Outdoor Fans

  • High design criteria to meet tough local ambient conditions
  • Extended system operating envelope with fully modulating head pressure control
  • Increased energy savings at part-load conditions with integrated speed control
  • High fan reliability with soft starting and low air noise
  • Quiet Mode for noise sensitive applications

Epoxy Coated coils

All Temperzone units come standard with epoxy coated indoor and outdoor coils for added protection in harsh enviroments. For corrosive environments, varieties of lacquered fin stock have been developed as an alternative to the more expensive copper fin stock.
Of the various coatings, for aluminium fin stock, epoxy has emerged as the preferred coating as protection against both chemical and salt laden air corrosion.The controlled application of epoxy, to the aluminium fin stock, results in a highly corrosion resistant epoxy film of only 4-5 microns.

Coil Guards

The powder coated louvered grille guard allows for superior protection in extreme weather conditions.The guard is designed to prevent coil damage and an accumulation of material build up. Combined with the epoxy coated coils it aids in keeping the heat exchange surface cleaner leading to better system performance and efficiency.


Polyester Powdercoat

The sheet metal in temperzone units have the following treatment Metall Spray 315NS / Rinse / EcoSeal 800 / Powder Top Coat.Aluminium and Zinc-coated steel panels treated with Metall Spray 315NS and EcoSeal 800 process passed the performance requirements of AS/NZS 4506 for Atmospheric Classification D High Marine/Industrial Duralloy is a tough thermosetting powder coating that exhibits decorative and durable characteristics suitable for a broad range of interior and exterior product applications where excellent durability is required and with excellent colour retention.

Technical Data

OPA 116RKTYH, 11.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 161RKTYH, 16.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 186RKTYH, 18.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 201RKTYH, 20kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 242RKTBH-P, 23.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 294RKTBH, 29.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 340RKTBH, 34kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 370RKTBH, 39.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 465RKTB01, 44.4kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 550RKTB01, 53.8kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 705RKTB01, 68.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 1370RKTM01, 137kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 2000RKTM01, 193kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 116RKTYH, 11.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 161RKTYH, 16.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 186RKTYH, 18.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 201RKTYH, 20kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 242RKTBH-P, 23.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 294RKTBH, 29.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 340RKTBH, 34kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 370RKTBH, 39.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 465RKTB01, 44.4kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 550RKTB01, 53.8kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 705RKTB01, 68.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 1370RKTM01, 137kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 2000RKTM01, 193kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 116RKTYH, 11.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 161RKTYH, 16.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 186RKTYH, 18.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 201RKTYH, 20kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 242RKTBH-P, 23.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 294RKTBH, 29.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 340RKTBH, 34kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 370RKTBH, 39.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 465RKTB01, 44.4kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 550RKTB01, 53.8kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 705RKTB01, 68.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 1370RKTM01, 137kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 2000RKTM01, 193kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 116RKTYH, 11.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 161RKTYH, 16.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 186RKTYH, 18.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 201RKTYH, 20kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 242RKTBH-P, 23.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 294RKTBH, 29.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 340RKTBH, 34kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 370RKTBH, 39.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 465RKTB01, 44.4kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 550RKTB01, 53.8kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 705RKTB01, 68.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 1370RKTM01, 137kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 2000RKTM01, 193kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 116RKTYH, 11.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 161RKTYH, 16.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 186RKTYH, 18.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 201RKTYH, 20kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 242RKTBH-P, 23.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 294RKTBH, 29.5kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 340RKTBH, 34kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 370RKTBH, 39.1kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 465RKTB01, 44.4kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 550RKTB01, 53.8kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 705RKTB01, 68.6kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 1370RKTM01, 137kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal

OPA 2000RKTM01, 193kW Air Cooled Package Unit, R410A, Handing: Standard - Horizontal
